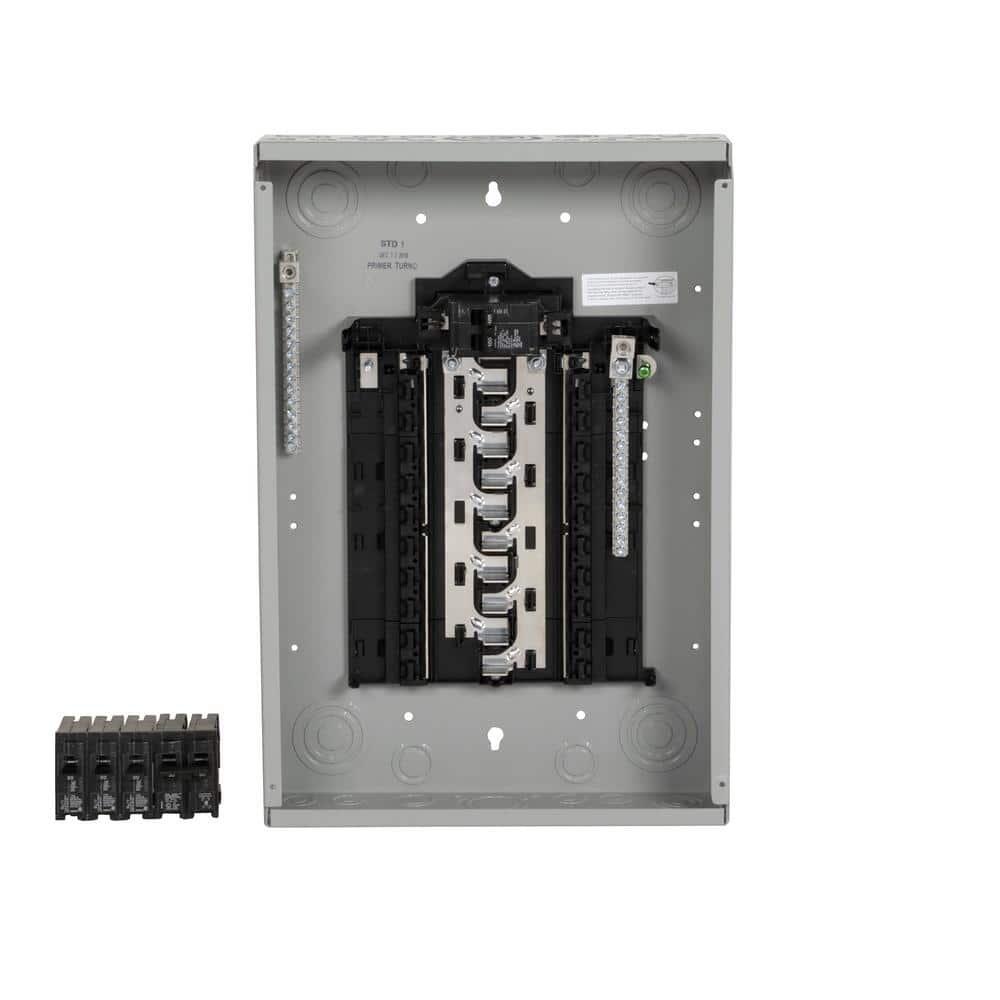

Siemens SN Series 100 amps 120/240 V 20 space 20 circuits Circuit Breaker Panel

$119.95

In stock

SKU: 3008310 Category:

Description

The new Siemens SN Series Load Center is the smart choice when value and quick installation are of highest priority. The SN Series load centers include labor saving features such as the ability to accept plug-on neutral breakers, patented Insta-wire and mounting trim tabs. These exclusive features make the SN Series load center the best load center for the value minded contractor. It includes three Q120 1-Pole 20A and one Q230 2-Pole 30A breakers. The sturdy hook-rail and reliable connection improves its security.

  • Features siemens plug-on neutral, for simple quick installation, that is spacious with over 4 inches of wire bending space and a secure reliable installation method
  • Single phase load center
  • Aluminum bus
  • NEMA type 1 enclosure
  • Interrupt rating 22000 AIC



Specifications:

  • Brand Name: Siemens
  • Sub Brand: SN Series
  • Amps: 100 amps
  • Volts: 120/240 V
  • Number of Spaces: 20 space
  • Maximum Number of Circuits: 20 circuits
  • Mounting Type: Combination Mount
  • Product Type: Circuit Breaker Panel
  • Depth: 3.875 in.
  • UL Listed: Yes
  • Circuit Protection Type: Main Breaker
  • Height: 24 in.
  • Width: 14.25 in.
  • Indoor or Outdoor: Indoor

Additional information

Weight 28.0 lbs
Item Condition

New

Size Type

Regular

UPC

804766940330

Item Remarks
MPN
Brand

Siemens

Barcode

804766940330
