Description
A manual transfer switch is used to connect a secondary power source, such as a portable generator or inverter, to circuits in a home or building that are wired into the electrical system. The transfer switch isolates the generator power from the utility power making it safe to use the generator as a backup source to run critical circuits in the event the main power fails and eliminate the possibility of back feeding the utility line. The Pro/Tran models can accommodate up to 10 circuits and generators with a 50A 125/250V outlet (around 12,5000 watts) and the Panel/Link models are rated up to 200 amps and can act as service or feed-through disconnects, stand-alone main panels or sub panels and can accommodate up to a 31kw generator. More specialized transfer equipment is also available for traffic signals, telecommunications sites and other light commercial applications.
- All-weather use
- Illuminated connector

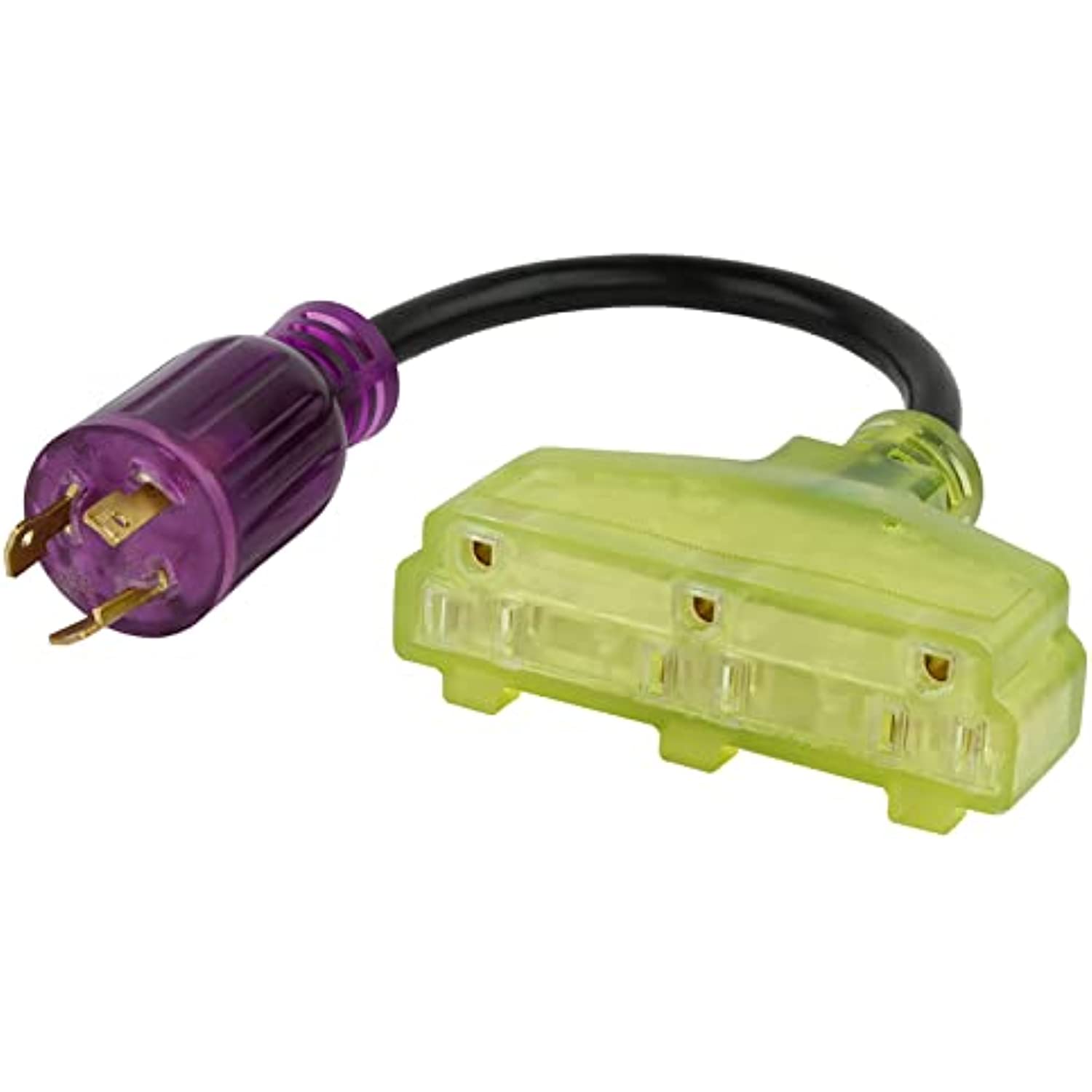

- Purple end is a NEMA L5-20 20A -125V, Yellow end has three NEMA 5-15 15A – 125V
- Gauge 12
Specifications:
- Brand Name: Reliance Controls
- Sub Brand: Color Connect
- Gauge Conductors: 12/3 SJTW
- Volts: 125 V
- Length: 12 in.
- Product Type: Splitter Cord
- Plug Type: L5-20
- Packaging Type: Carded
- Number in Package: 1 pk
- Indoor or Outdoor: Outdoor
- Color: Black
- Maximum Wattage: 2500 W
- Maximum Amperage: 20 amps
- Insulation Material: Rubber
