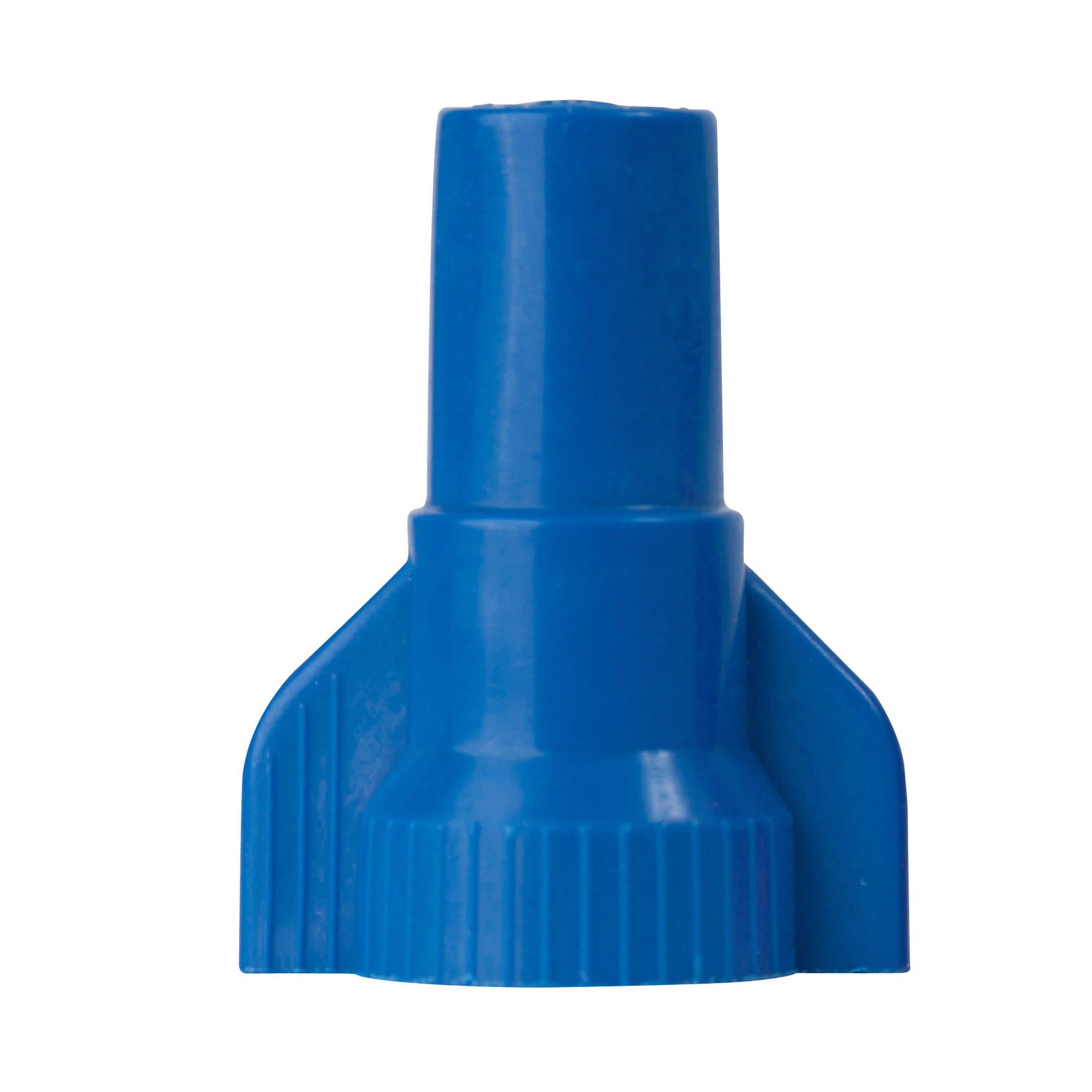

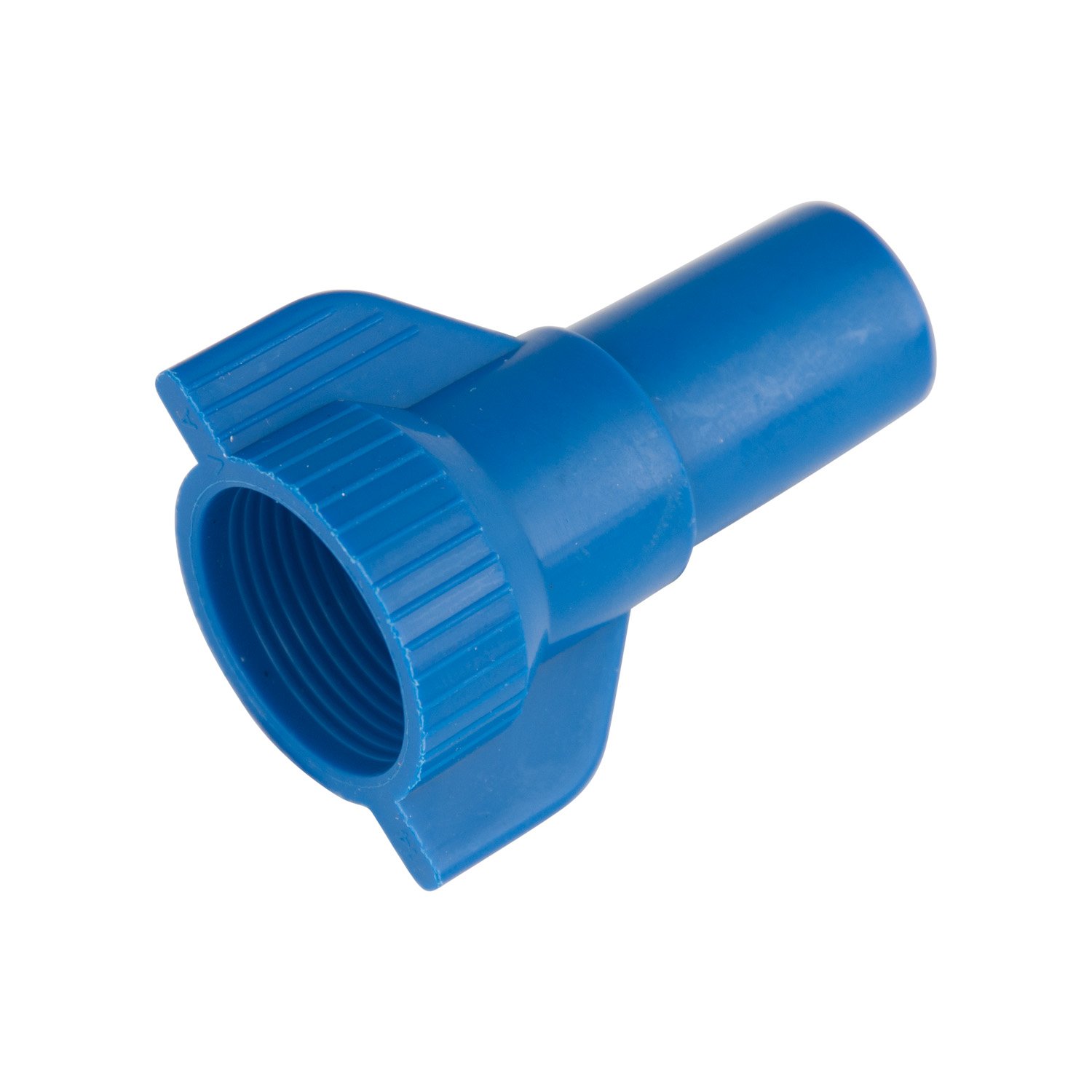

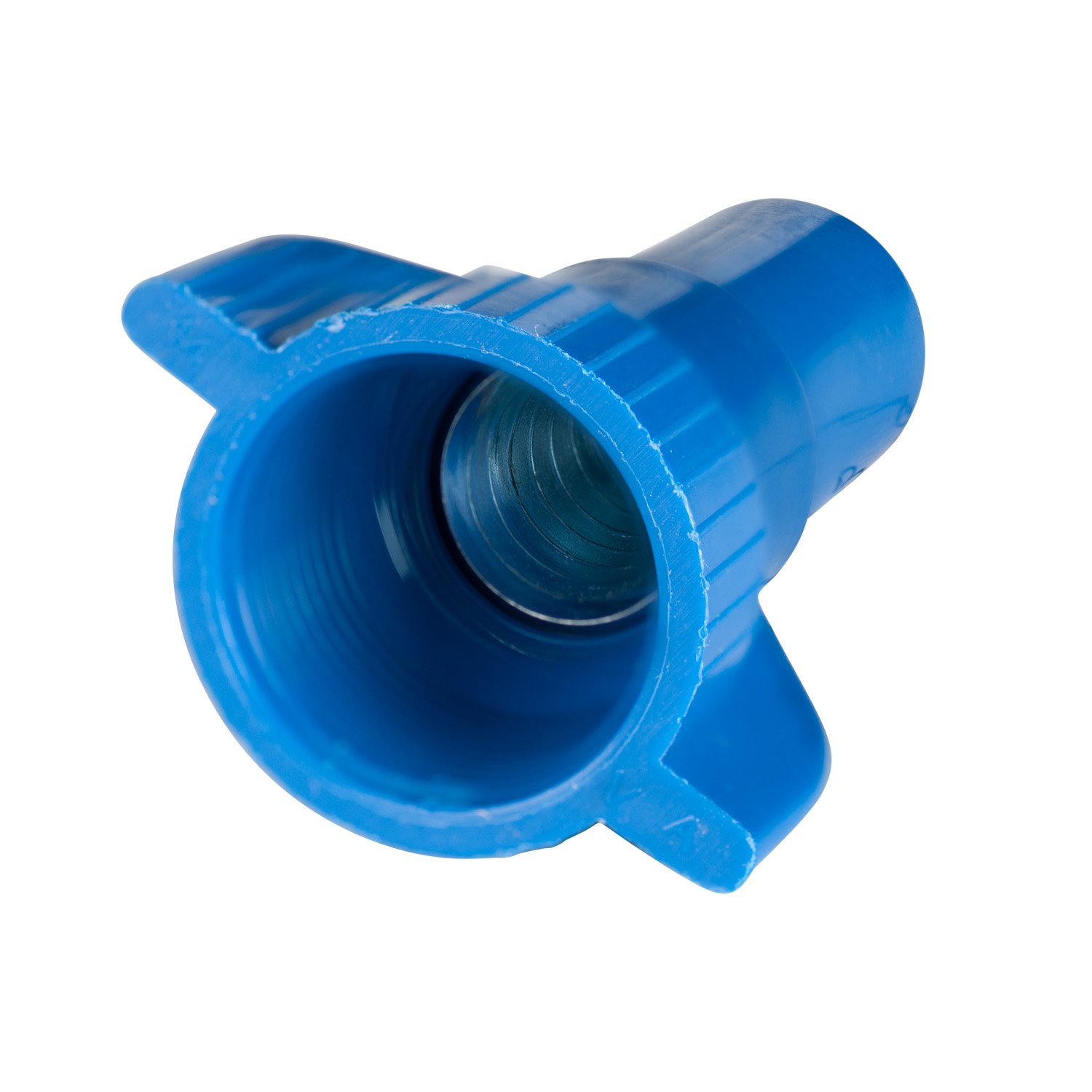

Gardner Bender WingGard 14-6 Ga. Copper Wire Connector Blue 50 pk

Description

GB’s WingGard twist on wire connectors offer unsurpassed quality and durability in a high leverage, easy on, wing type design. These hardworking connectors offer a wide range of connection options essentially ensuring that one size can do the job of multiple standard connectors. The swept wings provide added turning torque and reduce the strain of multiple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc plated square wire spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force.

• Wings are knurled for a sure grip and offset from centerline for greater twisting leverage
• Flame-retardant properties resist heat distortion up to 105 degrees Celsius/221 degrees Fahrenheit
• Rated at 600V max in building wire and at 1000V max in lighting, fixtures/luminaries and signs
• Copper to copper connections only
• Buttress threads screw into wire insulation

Specifications:

• Brand Name: Gardner Bender
• Sub Brand: WingGard
• Wire Size: 14-6 Ga.
• Wire Type: Copper
• Product Type: Wire Connector
• Color: Blue
• Number in Package: 50 pk

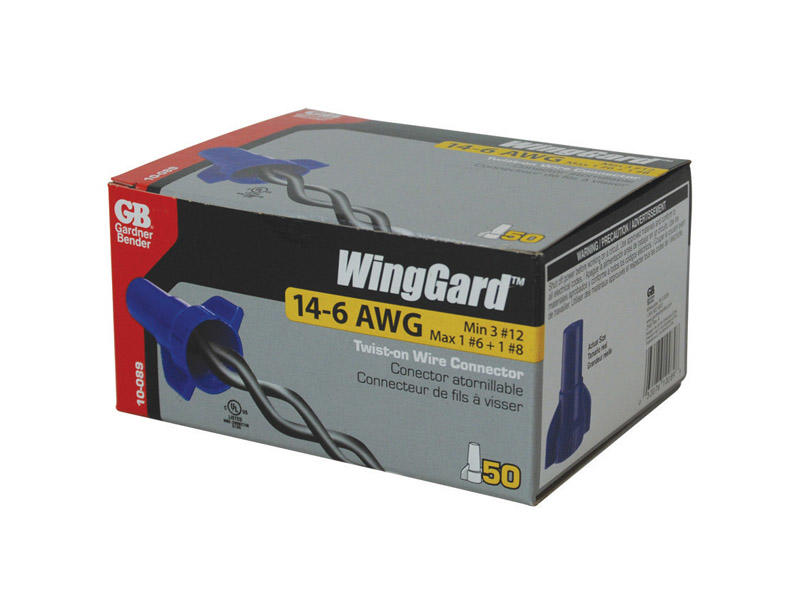

• Packaging Type: Boxed
• UL Listed: Yes
• CSA Listed: Yes
• Maximum Wire Combination Size: (1) #6 + (2) #8
• Minimum Wire Combination Size: (3) #12
