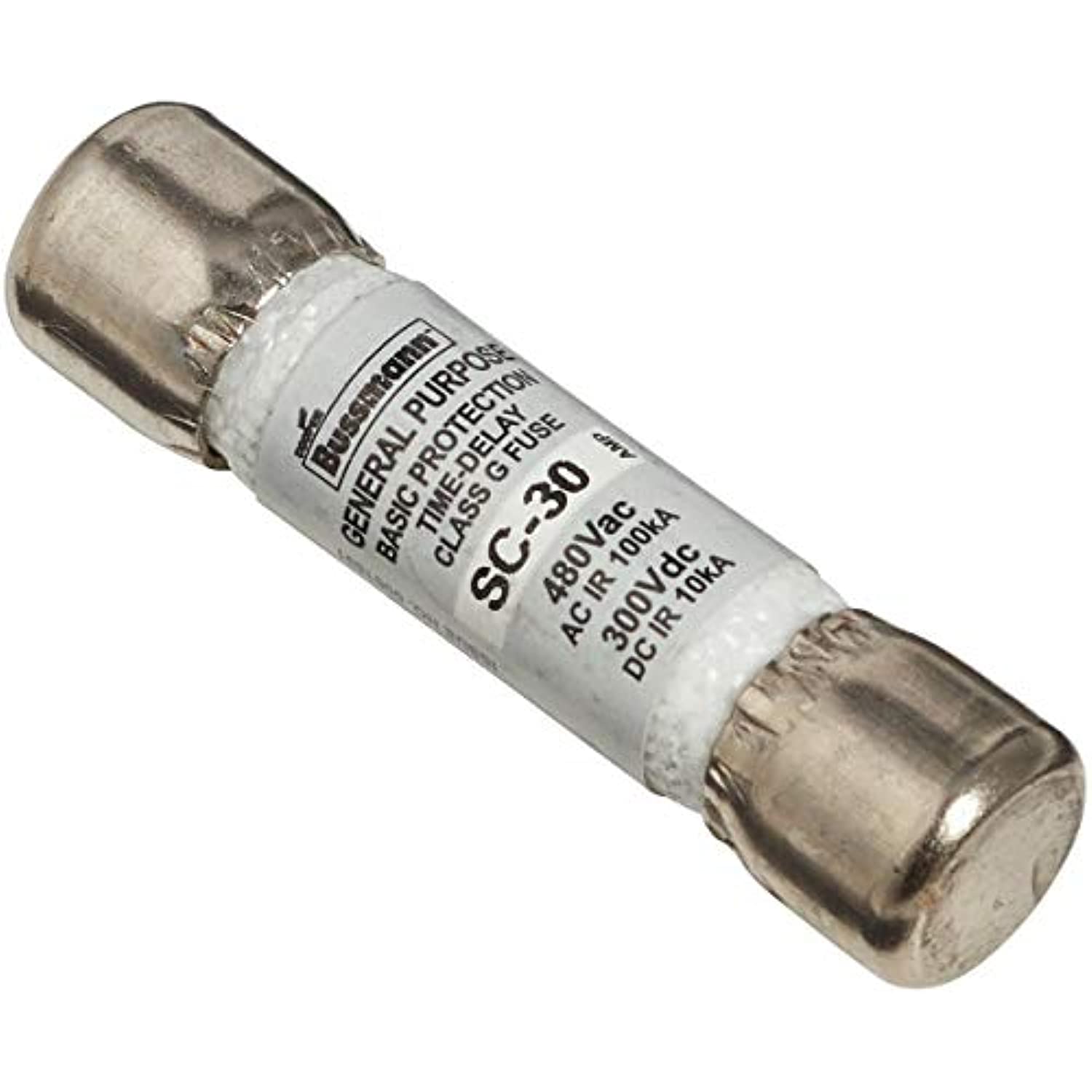

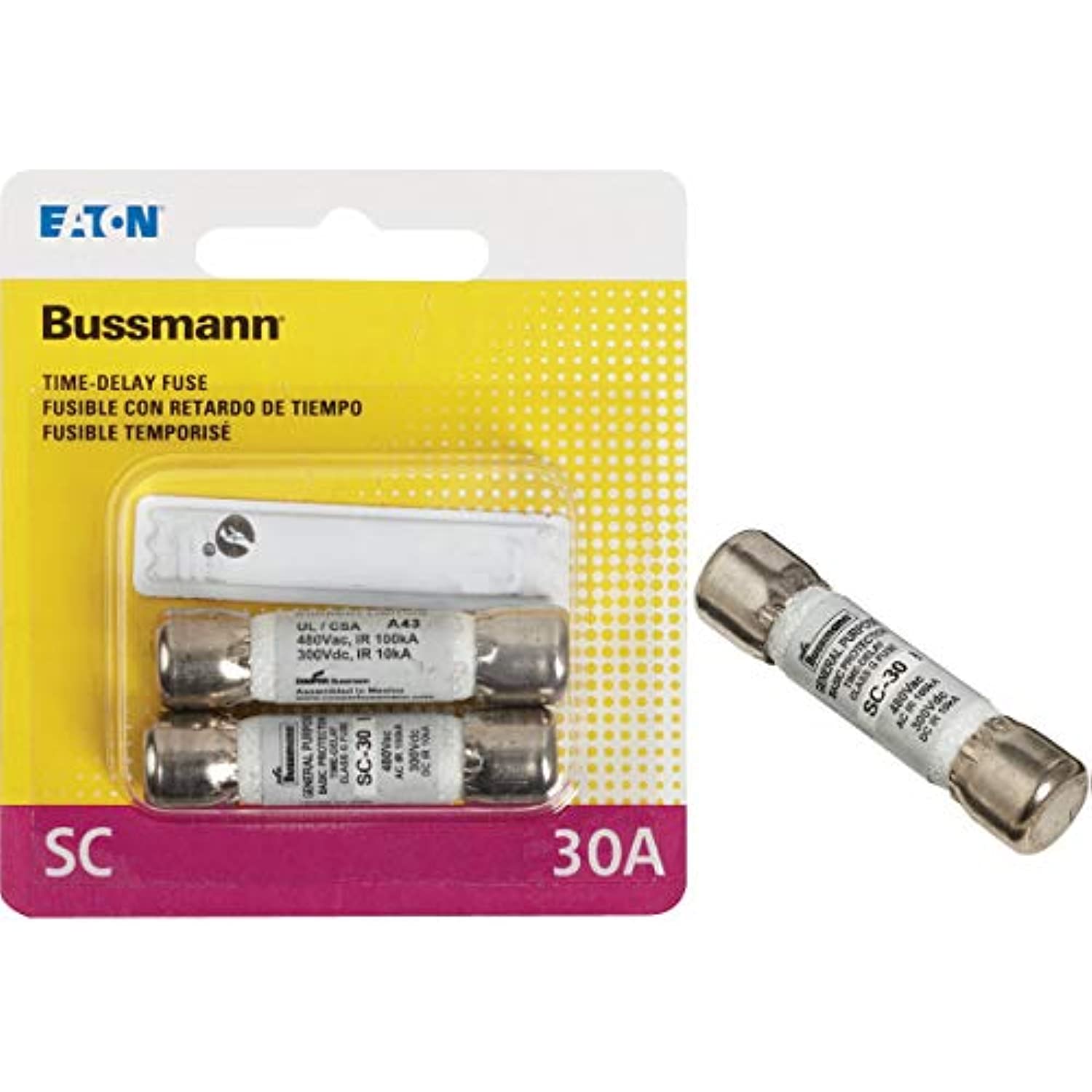

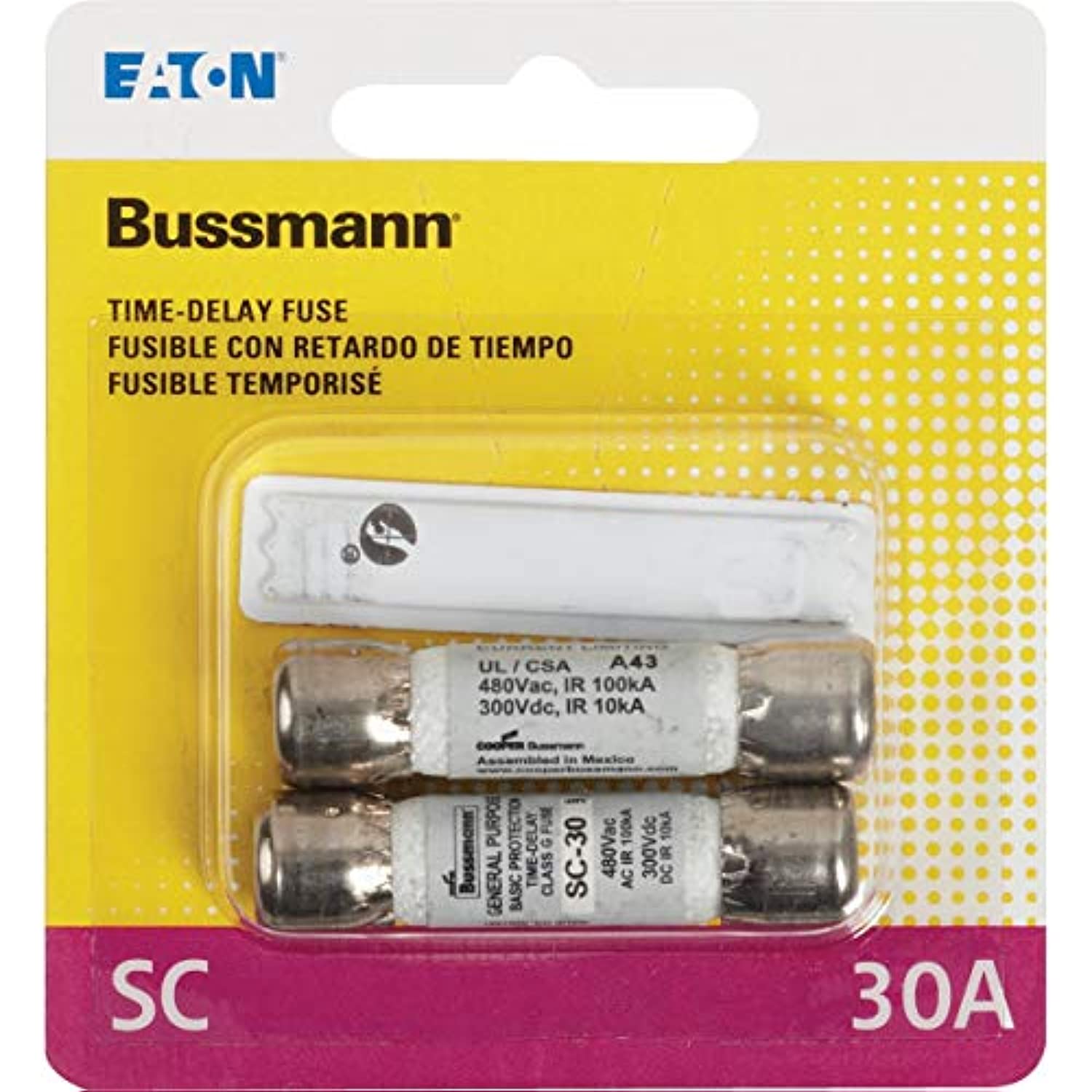

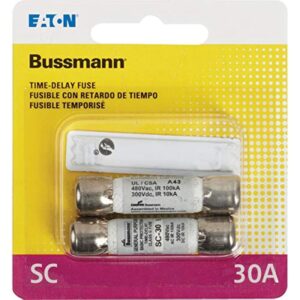

Bussmann 30 Amp Time-Delay Class G Melamine Tube, 600V UL Listed (Pack of 2)

$19.95

Free Shipping

In stock

SKU: 3209228 Category:

Description

These highly compact branch circuit fuses are used in residential, mobile home and industrial applications. They have a minimum 300 volt rating and are available up to 60 ampere. All SC fuses are 13/32 inch diameter with varying lengths to provide a rejection feature that prevents over fusing (installing a 30 ampere fuse in a 20 A circuit). One half to 6 ampere SC fuses are fast-acting, while 7 to 60 ampere SC fuses are time-delay to permit temporary overloads to pass without nuisance openings.

  • Time delay
  • Melamine tube
  • 600 volt rating
  • 30 amp
  • 13/32″ D X 1.62″ L
  • 2 count
  • These highly compact branch circuit fuses are used in residential, mobile home and industrial applications. 600 volt rating and 30 amp. 13/32″ diameter X 1.62″ length. Provides a rejection feature that prevents over fusing.



Specifications:

  • Brand Name: Bussmann
  • Amps: 30 amps
  • Product Type: Midget Fuse
  • Number in Package: 2 pk
  • Packaging Type: Carded
  • Tube Construction: Melamine
  • Tamper Proof: No
  • Application: Branch Circuit
  • Individual Product Diameter: 7/16 in.
  • CSA Listed: Yes
  • Endcap Construction: Nickel Plated Brass
  • UL Listed: Yes
  • Volts: 480 V
  • Individual Product Length: 1-5/16 in.

Additional information

Weight 0.38 lbs
Dimensions 1.6 × 2.5 × 4.5 in
Item Condition

New

Size Type

Regular

Style

FUSE

UPC

051712593137

Item Remarks
MPN

BP/SC-30

Brand

Bussmann

Barcode

051712593137

Brand

Bussmann
