Description

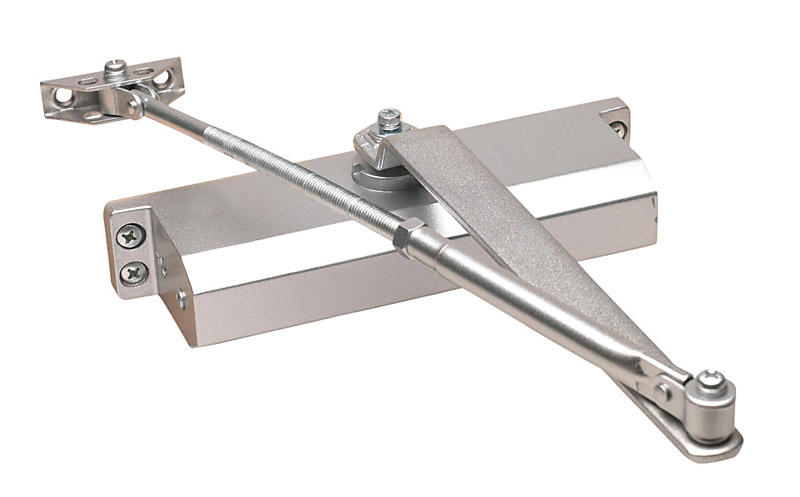

Tell Manufacturing's 500 Series Door Closer is designed for interior commercial use. It is a Grade 3 heavy-duty aluminum commercial door closer that complies with ANSI A156.4, UL/ULC listed up to 3 hour fire rated. The DC100321 has a fixed spring tension, size 2.
- Forged steel, accommodates reveals up to 3 1/4 inch adjustable extension arm
- Adjustable hydraulic providing cushioning and preventing uncontrolled openings of the door
- Grade 3 size 2 aluminum finish closer
- 9-1/16 inch horizontal and 3/4 inch vertical mounting hole locations
- Tri-pack regular, top jamb and parallel arm applications
- Door range up to 180 degree
- Complies with ANSI A156.4, grade 1, 2 million cycles, UL/ULC listed up to 3 hours fire rated
- Adjustable, independent, non-critical (sweep and latch), consistentand closing speeds
FEATURES
- Brand Name: Tell
- Material: Aluminum/Steel
- Mechanism: Hydraulic
- Product Type: Door Closer
- Grade: Grade 3
- Packaging Type: Clamshell
- Adjustable Closing Speed: Yes
- Minimum Door Length: 30 in.
- Hardware Included: Yes
