Scotchcast Inline Resin Power Cable Splice Kit 82-A3N

Description

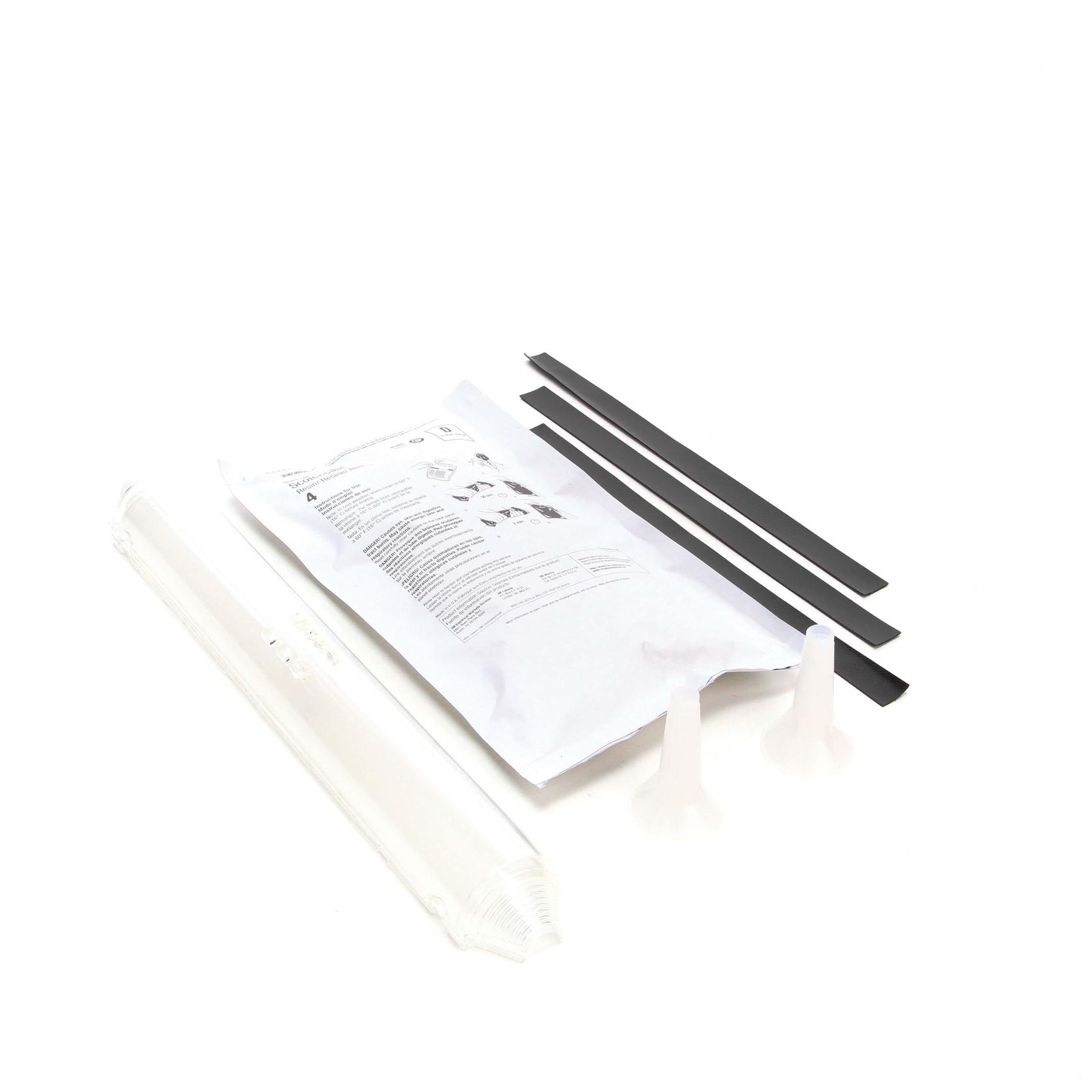

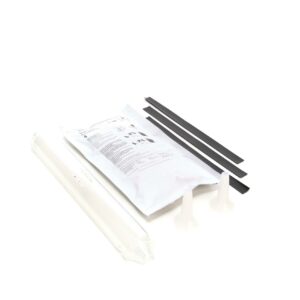

3M™ 82-A Series Inline Resin Power Cable Splice Kit includes a mold body, pouring spouts, 23 electrical tape and No. 4 resin. It is perfect for splicing non-shielded wet or dry cables and single conductor or multiple conductor portable cables. UL Listed and RoHS 2011/65/EU Compliant.

Resin Splice Kit, In-Line, Non-Shielded, Conductor Range: 3/0 AWG – 400 MCM, Maximum Conductor O.D.: 1.563", Maximum Connector O.D.: 1.000". For use with 1 kV to 5 kV Non-Shielded Conductors.
